Monthly Archives: August 2013

Let’s Discover SharePoint

MS has launched a nice site that is targeted to potential customers wanting to get to learn SharePoint at http://www.discoversharepoint.com/

Advertisements

SPCAF

SPCAF

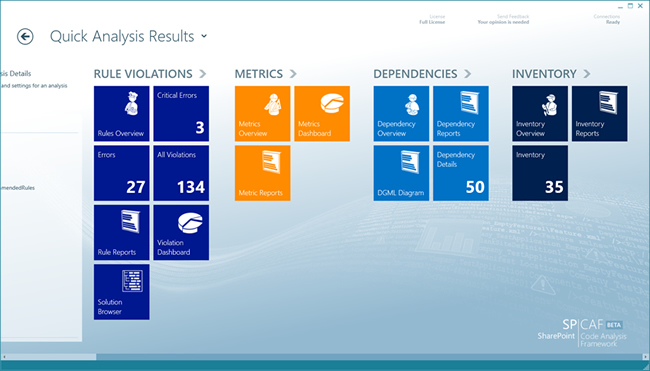

SharePoint Code Analysis Framework (SPCAF) currently is a free beta tool (http://visualstudiogallery.msdn.microsoft.com/d3b2aaf7-0d6a-4995-a4e5-4153c57e3889) and remains that way until 2013/09/30, but eventually will become a commercial product. SPCAF currently uses +/- 300 rules dedicated to SharePoint analyzing compiled code, XML files, user controls (*.ascx files), pages (*.aspx files), and master pages (*.master files). It integrates in Visual Studio and is also available as a separate client application that can be run from the command line. The following Figure shows a screenshot of the client application.

Pic1

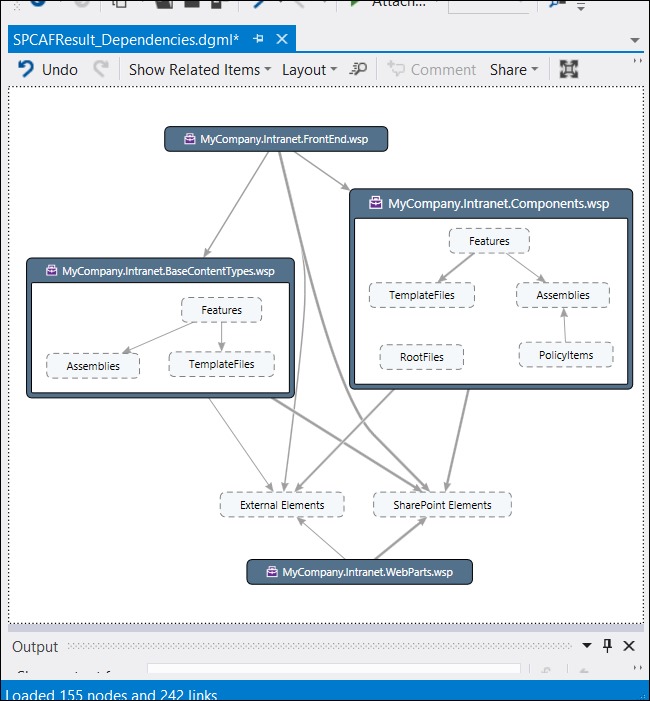

The following Figure shows a dependency graph that understands SharePoint solution files.

pic2

SPCAF rules are divided in various categories:

· Correctness. Correctness rules check the SharePoint XML code for syntax errors. This includes check for all required XML attributes, correct values and data types of attributes. For example, such rules check for required Id attributes in the <Solution> element, valid GUIDs, and checks Feature folder and file names don’t contain spaces.

· Security. Checks if solutions pose security issues. For example, such rules check for calls to SPWeb.AllowUnsafeUpdates, WindowsIdentity.Impersonate() calls, running with elevated privileges, specific CAS policy settings, and presence of a form digest control in *.aspx pages.

· SharePoint Supportability. Checks if solutions endanger the supportability of SharePoint. For example, such rules check for attempts to change system files, accessing the SharePoint API via reflection, reading the content database connection string, and querying SharePoint databases directly.

· Design. Warnings that support proper library design. For example, such rules check for presence of assembly file version number, hard coded URLs, and programmatically created content types.

· Best Practices. Rules to warn if best practices are not used. For example, such rules check for direct calls to Item collection of SPList, check if locking is used when storing objects in SharePoint cache, and instantiating new list, list object, sites, and/or webs in event receivers.

· Deployment. The deployment process of SharePoint customizations is often a critical part. Deploying the wrong way or the wrong files can harm the SharePoint farm or make the farm inaccessible. Deployment rules check the code for these risks or potential problems. For example, such rules check for global deployments, web server resets in code during deployment, deploy assemblies in Debug mode, and deployment of web services to the SharePoint LAYOUTS folder.

· Localization. Localization is the process of customizing an application, webpage, or website for a given culture or locale. The localization rules check if all attributes in XML which support localization are localized in a proper way. For example, such rules check that localizable attributes (such as display names) use resources and more.

· Naming. Checks files and artifacts for violations against naming conventions. For example, such rules check for valid namespaces, names of web templates that start with &apos;WEBTEMP&apos;.

· Customization. Rules which check violations against SharePoint customization guidelines. For example, such rules check for the presence of HTTP handlers and/or modules, presence of timer jobs, presence of event receivers, and presence of inline code in .aspx pages.

· Sandboxed compatibility. Checks files and artefacts whether they are compatibel with Sandboxed solutions requirements. For example, such rules check for presence of APTCA attribute, references to .NET assemblies that are unavailable within the sandbox, and HideCustomAction elements.

· SharePoint 2007 compatibility. Checks files and artefacts whether they are compatibel with SharePoint 2007. For example, such rules check for references to the correct assemblies.

· SharePoint 2010 compatibility. Checks files and artefacts whether they are compatibel with SharePoint 2010. For example, such rules check for check for references to the correct assemblies, and deprecated API calls.

· SharePoint 2013 compatibility. Checks files and artefacts whether they are compatibel with SharePoint 2013. For example, such rules check for references to the correct assemblies, .NET 4.5 target framework, and deprecated API calls.

SPCAF promises to become the most powerful tool when it comes to analyzing custom SharePoint solutions, but we’ll keep our eyes on the tool!

Discount for IT/Dev Connection Friends

There are many shades of friends, but by reading this blog, I (Margriet) consider you to be a SharePoint technology friend! After checking with my MS MVP contact, I found out I’d be allowed to share a discount code with you for the IT/Dev Connections that is held on September 30 – October 4 in Mandalay Bay, Las Vegas (http://www.devconnections.com/dev13/public/mainhall.aspx). This offer gives you a $100 discount on the registration fee.

What to do?

Just drop me an e-mail (margriet at loisandclark dot eu) and I will send you a promo code in return. During the registration, when prompted for a promo code, you will need to enter that promo code. You will be asked “How did you hear about the IT/Dev Connections?”. You will need to select. “friend/colleague” and then enter “MVP: Margriet Bruggeman” when prompted.

Margriet is a SharePoint MVP

Worth a mention, Margriet was recently awarded the SharePoint MVP title and has now moved on to order a complimentary laptop backpack (among other goodies). Congrats!

Use Cases for SharePoint

Microsoft has assembled a list of use cases for SharePoint 2013 that are both easy on the eye and easy on the brain at http://aka.ms/spuc

Tale of Two Gunslingers

SharePoint 2013 Workspaces

For all people missing workspaces in sps 2103:

Document Workspace site template:
– No longer available to simplify the list of site templates. Collaborating on a document is now provided by the Team Site site template.
– Workspaces created in SPS 2010 and upgraded to 2013 continue to function, but are deprecated and will not work in vNext.

Meeting Workspace site templates
– All meeting workspace templates are no longer available (such as Blank Meeting Workspace) as functionality overlaps to much with other Office and/or SharePoint functionality (such as Lync live meetings, OneNote note taking during meetings, normal SharePoint team sites).
– Workspaces created in SPS 2010 and upgraded to 2013 continue to function, but are deprecated and will not work in vNext.

Changes from SPS 2010 to 2013 overview: http://technet.microsoft.com/en-us/library/ff607742.aspx

Interesting SharePoint Resource

The title of the page, Troubleshooting SharePoint 2013, is really a misnomer, but http://technet.microsoft.com/en-us/library/gg609831.aspx is a useful page that provides a nice overview of training and resources about SharePoint.

Troubleshooting E-mail alerts
